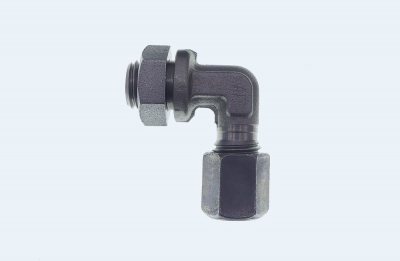

Bulkheads 24° elbow - female thread greasing aid
DIN 2353 ISO 8434-1
Steel, surface zinc-nickel / chrome-VI free

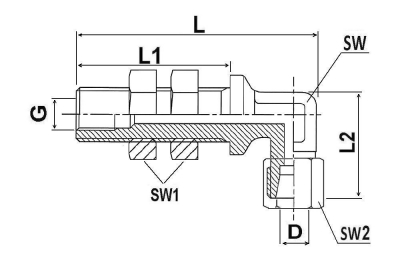

| Item No. | Diam ø | G | L | L1 | L2 | SW | SW1 | SW2 | Serie | Bag | Box |
| 1019-001 | 6 | M 6 x 1 | 54 | 34 | 24 | 12 | 17 | 14 | L | 10 | 250 |

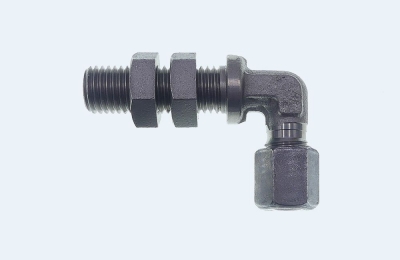

Steel, surface zinc-nickel / chrome-VI free
| Item No. | Diam ø | G | L | L1 | L2 | SW | SW1 | SW2 | Serie | Bag | Box |
| 1019-002 | 6 | M 6 x 1 | 30 | 11 | 24 | 12 | 17 | 14 | L | 10 | 250 |
Bulkhead fittings with grease nipples are used wherever lubrication points (bearings, threads...) are difficult to access, for ex. behind covers, protective walls or similar devices. The usage can be the classic manual lubrication or an emergency lubrication function, which plays an important role in a central lubrication system.
.jpg)
The lubrication aid, bulkhead fitting with grease nipple, is the „fitting duo“ for all common grease guns. The grease is fed to the lube point via the grease nipple and through the bulkhead screw connection.
Either the bulkhead is screwed directly on the lubrication point with a cutting ring fitting or a connection with the help of a high pressure hose or a plastic tube is needed.
For the maintenance and servicing of lubrication systems in construction machinery and construction vehicles, ... but also in industrial plants, the bulkhead screw connection with lubrication function is essential.
