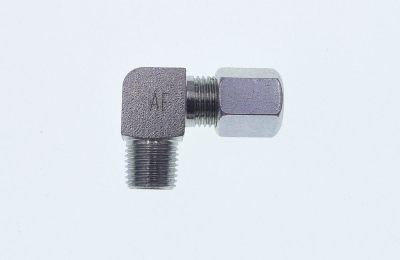

Elbow screw fittings
DIN 2353 ISO 8434-1
Steel zinc / steel zinc-nickel / Cr-VI free
|
Item No. |
Description |
D |
G |
SW |
SW1 |
Serie |
Bag |
Box |
|
104-101 |
WE04-LL M6x1 |
4 |
6 x 1 tap |
9 |
10 |
LL |
50 |
500 |
|
104-102 |
WE04-LL M8x1 |
4 |
8 x 1 tap |
9 |
10 |
LL |
50 |
500 |
|
104-102-8x1,25 |
WE04-LL M8x1,25 |
4 |
8 x 1,25 tap |
9 |
10 |
LL |
50 |
500 |
|
104-103 |
WE04-LL M10x1 |
4 |
10 x 1 tap |
11 |
10 |
LL |
50 |
500 |
|
104-104 |
WE04-LL R1/8BSPT |
4 |
R 1/8 BSP / tap |
11 |
10 |
LL |
50 |
500 |
|
106-101 |
WE06-LL M6x1 |
6 |
6 x 1 tap |
11 |
12 |
LL |
100 |
500 |
|
106-102 |
WE06-LL M8x1 |
6 |
8 x 1 tap |
11 |
12 |
LL |
100 |
500 |
|
106-102-8x1,25 |
WE06-LL M8x1,25 |
6 |
8 x 1,25 tap |
11 |
12 |
LL |
100 |
500 |
|
106-103 |
WE06-LL M10x1 |
6 |
10 x 1 tap |
11 |
12 |
LL |
100 |
500 |
|
106-103-L |
WE06-L M10x1 |
6 |
10 x 1 tap |
12 |
14 |
L |
50 |
500 |
|
106-104 |
WE06-LL R1/8BSPT |
6 |
R 1/8 BSP / tap |
11 |
12 |
LL |
100 |
500 |
|
106-104-L |
WE06-L R1/8BSPT |
6 |
R 1/8 BSP / tap |
12 |
14 |
L |
50 |
500 |
|
106-105-L |
WE06-L R1/4BSPT |
6 |
R 1/4 BSP / tap |
12 |
14 |
L |
50 |
500 |
|
106-104-NPT |
WE06-LL 1/8NPT |
6 |
1/8 NPT |
11 |
12 |
LL |
100 |
500 |
|
1010-005 |
WE06-LL1/4-28UNF |
6 |
14 - 28 UNF |
11 |
12 |
LL |
100 |
500 |
|
108-103 |
WE08-LL M10x1 |
8 |
10x1 / tap |
12 |
14 |
LL |
50 |
500 |
|
108-104 |
WE08-LL R1/8BSPT |
8 |
R 1/8 BSP / tap |
12 |
14 |
LL |
50 |
500 |
|
108-104-L |
WE08-L R1/8BSPT |
8 |
R 1/8 BSP / tap |
12 |
14 |
L |
50 |
500 |
|
108-105-L |
WE08-L R1/4BSPT |
8 |
R 1/4 BSP / tap |
12 |
17 |
L |
50 |
500 |
|
110-105-L |
WE10-L R1/4BSPT |
10 |
R 1/4 BSP / tap |
14 |
19 |
L |
50 |
250 |
Stainless steel 1.4401 / 316 / V4A
|
Item No. |
Description |
D |
G |
SW |
SW1 |
Serie |
Bag |
Box |
|
1010-001 |
WE04-LL M6x1 |
4 |
6 x 1 tap |
9 |
10 |
LL |
25 |
250 |
|
1010-002 |
WE04-LL M8x1 |
4 |
8 x 1 tap |
9 |
10 |
LL |
25 |
250 |
|
1010-003 |
WE04-LL M10x1 |
4 |
10 x 1 tap |
11 |
10 |
LL |
25 |
250 |
|
1010-004 |
WE04-LL R1/8 BSPT |
4 |
R 1/8 BSP tap |
11 |
10 |
LL |
25 |
250 |
|
106-101-VA |
WE06-LL M6x1 |
6 |
6 x 1 tap |
11 |
12 |
LL |
25 |
500 |
|
106-102-VA |
WE06-LL M8x1 |
6 |
8 x 1 tap |
11 |
12 |
LL |
25 |
500 |
|
106-103-VA |
WE06-LL M10x1 |
6 |
10 x 1 tap |
11 |
12 |
LL |
25 |
500 |
|
106-104-VA |
WE06-LL R1/8BSPT |
6 |
R 1/8 BSP / tap |
11 |
12 |
LL |
25 |
500 |
|
106-104-VA-L |
WE06-L R1/8BSPT |
6 |
R 1/8 BSP / tap |
12 |
14 |
L |
25 |
250 |
|
106-105-VA-L |
WE06-L R1/4 |
6 |
R 1/4 BSP / tap |
12 |
14 |
L |
25 |
250 |
|
1010-006 |
WE06-LL R1/8NPT |
6 |
1/8 NPT |
11 |
12 |
LL |
25 |
250 |
|
108-104-VA |
WE08-L 1/8BSPT |
8 |
R 1/8 BSP / tap |
12 |
14 |
LL |
25 |
250 |
|
108-104-VA-L |
WE08-L R1/8BSPT |
8 |
R 1/8 BSP / tap |
12 |
17 |
L |
25 |
125 |
|
108-105-VA-L |
WE08-L R1/4BSPT |
8 |
R 1/4 BSP / tap |
12 |
17 |
L |
25 |
125 |
