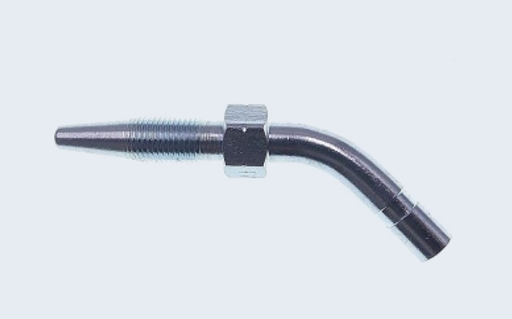

Hose Stud 45°
Steel zinc / steel zinc-nickel / CrVIF

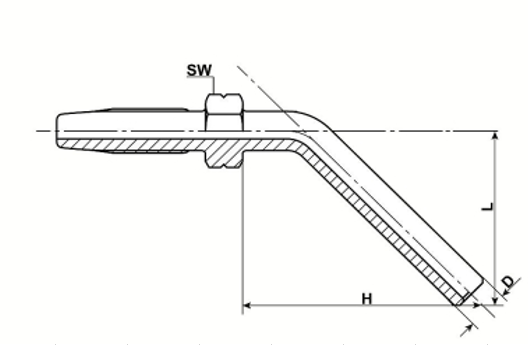

| Item No. | Hose Ø | Diam ø | H | L | SW | Bag | Box |
| 100-057 | 4,1 x 8,75 | 6 | 24 | 15 | 10 | 100 | 500 |
| 100-058 | 4,1 x 8,75 | 6 | 35 | 25 | 10 | 100 | 500 |
| 3512-110 | 4,1 x 8,78 | 1/4" | 35 | 25 | 11 | 100 | 1000 |
| 100-068 | 6,35 x 11,3 | 6 | 35 | 25 | 12 | 50 | 500 |
| 100-078 | 6,35 x 11,3 | 8 | 35 | 25 | 12 | 50 | 500 |
Stainless steel 1.4401 / 316 / V4A
| Item No. | Hose Ø | Diam ø | H | L | SW | Bag | Box |
| 100-058-VA | 4,1 x 8,75 | 6 | 35 | 25 | 10 | 25 | 500 |

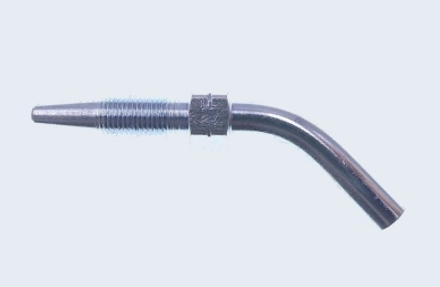

Steel zinc / steel zinc-nickel / CrVIF

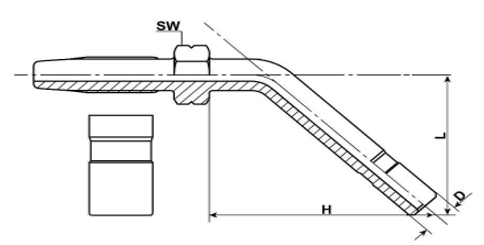

| Item No. | Hose Ø | Diam ø | H | L | SW | Bag | Box |
| 100-057-NUT | 4,1 x 8,75 | 6 | 24 | 15 | 10 | 100 | 500 |
| 100-058-NUT | 4,1 x 8,75 | 6 | 35 | 25 | 10 | 100 | 500 |
| 3512-111 | 4,1 x 8,75 | 1/4" | 35 | 25 | 11 | 100 | 1000 |
Steel zinc / steel zinc-nickel / CrVIF, black
| Item No. | Hose Ø | Diam ø | H | L | SW | Bag | Box |
| 100-058-NUT-SW | 4,1 x 8,75 | 6 | 35 | 25 | 10 | 100 | 500 |
