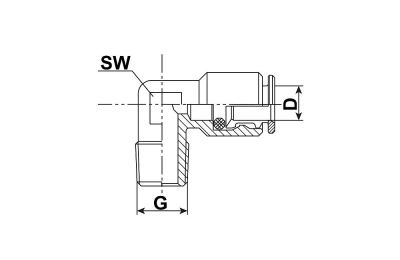

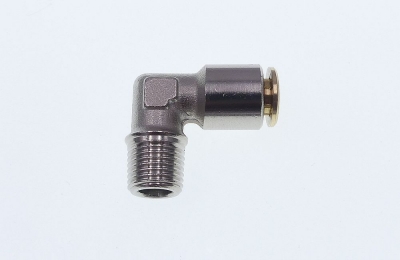

Elbow quick connectors - Push-in
Plated brass, metric screw thread
| Item No. | G | Diam ø | SW | Bag | Box |
| 104-151 | M6 x 1 tap | 4 | 10 | 50 | 500 |
| 104-152 | M8 x 1 tap | 4 | 10 | 50 | 500 |
| 104-153 | M10 x 1 tap | 4 | 10 | 50 | 500 |
| 106-151 | M6 x 1 tap | 6 | 10 | 50 | 500 |
| 106-152 | M8 x 1 tap | 6 | 10 | 50 | 500 |
| 106-153 | M10 x 1 tap | 6 | 10 | 50 | 500 |
Plated brass, inch screw thread
| Item No. | G | Diam ø | SW | Bag | Box |
| 104-154 | R 1/8 BSP tap | 4 | 10 | 50 | 500 |
| 104-154-NPT | 1/8 NPT | 4 | 10 | 50 | 500 |
| 104-155-UNF | 1/4 - 28 UNF | 4 | 10 | 50 | 500 |
| 106-154 | R 1/8 BSP tap | 6 | 10 | 50 | 500 |
| 106-154-NPT | 1/8 NPT | 6 | 10 | 50 | 500 |
| 106-155-UNF | 1/4 - 28 UNF | 6 | 10 | 50 | 500 |
| 2011-101 | 1/4 - 28 UNF | 1/4" | 10 | 50 | 500 |
| 2011-102 | 1/8 NPT | 1/4" | 10 | 50 | 500 |
