Screw sleeves for hose studs metric and inch threads
To get detailed information of our screw sleeve, please click the picture screw sleeve.
Screw sleeve for hose studs for assembling high pressure hose Ø 4,1 x 8,75
| Item No. | Material | L | SW | Bag | Box |
| 100-050 | Steel zinc / steel zinc-nickel / Cr-VI free | 28 | 12 | 100 | 500 |
| 100-050-SW | Steel zinc / steel zinc-nickel / Cr-VI free, black | 28 | 12 | 100 | 500 |
| 100-050-VA | Stainless steel 1.4401 / 316 / V4A | 28 | 12 | 25 | 500 |

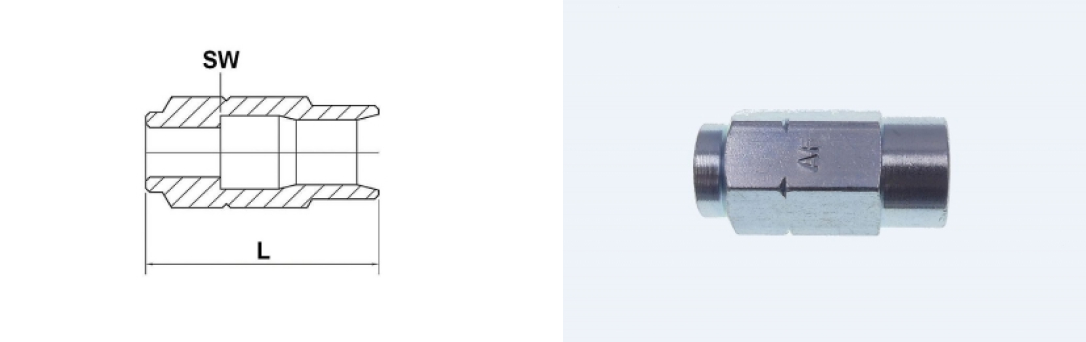

Screw sleeve for hose studs for assembling high pressure hose Ø 6,35 x 11,3
| Item No. | Material | L | SW | Bag | Box |
| 100-060 | Steel zinc / steel zinc-nickel / Cr-VI free | 35,8 | 17 | 50 | 500 |
| 100-060-VA | Stainless steel 1.4401 / 316 / V4A | 35,8 | 17 | 25 | 500 |

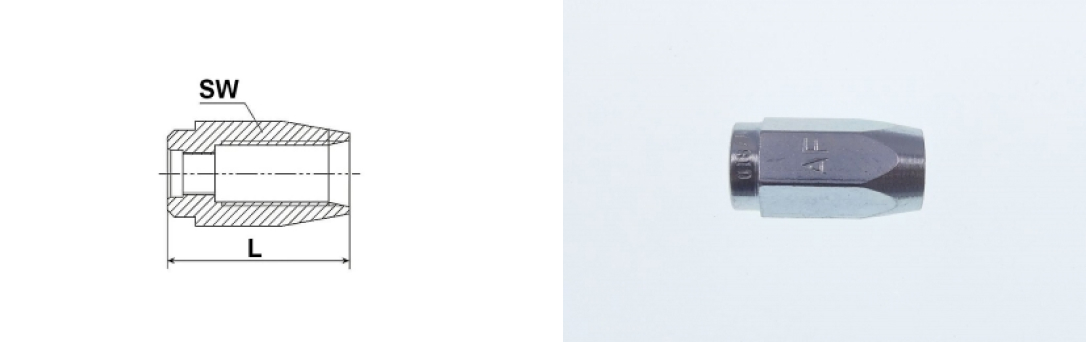

Screw sleeve for hose studs for assembling high pressure hose Ø 1/8" x 5/16"
| Item No. | Material | L | SW | Bag | Box |
| 100-050-1 | Steel zinc / steel zinc-nickel / Cr-VI free | 26 | 1/2" | 100 | 500 |
| 3010-001 | Stainless steel 1.4401 / 316 / V4A | 26 | 1/2" | 25 | 500 |
